Example 1 > ------------------------------------------------------------------------------------------------

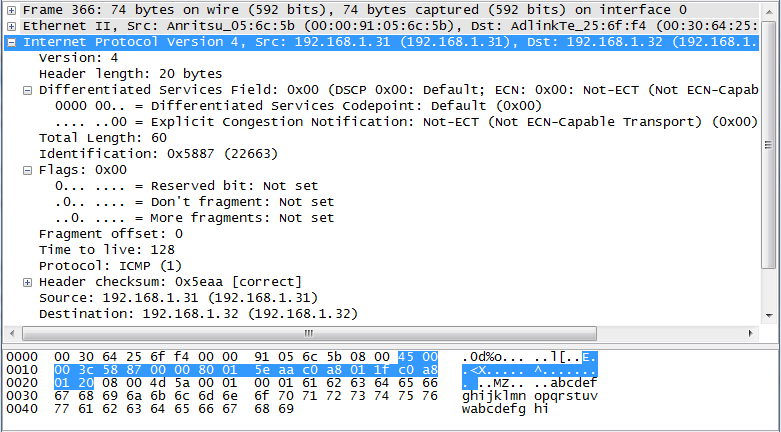

In this example, I will show you an example showing the IPv4 header as shown below.
Following is the source code that I will compile with Microsoft .Net 2008 VC++.
#include <stdio.h>
#include <stdlib.h>
#include <tchar.h>
// Followings are data type casting that will be used for converting Endianess (Convering Big
// Endian to little Endian and Little Endian to Big Endian)
typedef signed short int int16_t;
typedef unsigned short int uint16_t;
typedef signed int int32_t;
typedef unsigned int uint32_t;
// Following data structure for IPv4.
// NOTE : According to IPv4 header structure, I should define 'unsigned char ip_Version:4
// ,ip_HeaderLength:4 ' instead of 'unsigned char ip_HeaderLength:4, ip_Version:4'. This is because
// Windows is using the Little Endian. You should change the order of these two fields based on
// the system you are running the code.
typedef struct header
{
unsigned char ip_HeaderLength:4, ip_Version:4;
unsigned char ip_ServiceType;
unsigned short int ip_TotalLength:16;
unsigned short int ip_Identification:16;
unsigned short int ip_FragmentOffset:16;
unsigned char ip_TimeToLive:8;
unsigned char ip_Protocol:8;
unsigned short int ip_Checksum:16;
unsigned char ip_Source[4];
unsigned char ip_Destination[4];
} ipv4Header;
// Following APIs are to swap the Endianness (Type of Endian). Little to Big, Big to Little
uint16_t swap_uint16( uint16_t val )
{
return (val << 8) | (val >> 8 );
}
int16_t swap_int16( int16_t val )
{
return (val << 8) | ((val >> 8) & 0xFF);
}
uint32_t swap_uint32( uint32_t val )
{
val = ((val << 8) & 0xFF00FF00 ) | ((val >> 8) & 0xFF00FF );
return (val << 16) | (val >> 16);
}
int32_t swap_int32( int32_t val )
{
val = ((val << 8) & 0xFF00FF00) | ((val >> 8) & 0xFF00FF );
return (val << 16) | ((val >> 16) & 0xFFFF);
}
// Following is the main part of this example
int _tmain(int argc, _TCHAR* argv[])
{
ipv4Header hIPv4;
// Following is Byte Array that will be used in this example. This example is from
// the wireshark log shown above. In real application, you may get this data from
// other source like binary file or network interface card.
unsigned char ipPacket[] = {
0x45, 0x00, 0x00, 0x3C, 0x58, 0x87, 0x00, 0x00,
0x80, 0x01, 0x5E, 0xAA, 0xC0, 0xA8, 0x01, 0x1F,
0xC0, 0xA8, 0x01, 0x20, 0x08, 0x00, 0x4D, 0x5A,
0x00, 0x01, 0x00, 0x01, 0x61, 0x62, 0x63, 0x64,
0x65, 0x66, 0x67, 0x68, 0x69, 0x6A, 0x6B, 0x6C,
0x6D, 0x6E, 0x6F, 0x70, 0x71, 0x72, 0x73, 0x74,
0x75, 0x76, 0x77, 0x61, 0x62, 0x63, 0x64, 0x65,
0x66, 0x67, 0x68, 0x69
};
// Copy the block of data from ipPacket and assign them to hIPv4
// By this line, the data is automatically split into each items defined in ipv4Header
memcpy(&hIPv4,ipPacket,sizeof(ipv4Header));
// Following is to print out the items analyzed by ipv4Header data structure.
// You would see some value goes through Endian Swap function before it get printed out.
// If you are using this example on Big Endian system, you would not need to use these
// Endian Swap function.
printf("Version :%d\n",hIPv4.ip_Version);
printf("Header length :%d Bytes\n",hIPv4.ip_HeaderLength*4);
printf("Service :%#02x\n",hIPv4.ip_ServiceType);
printf("Total Length :%d\n",swap_uint16(hIPv4.ip_TotalLength));
printf("Identification :%#x (%d)\n",swap_uint16(hIPv4.ip_Identification)
,swap_uint16(hIPv4.ip_Identification));
printf("Fragment Offset :%d\n",swap_uint16(hIPv4.ip_FragmentOffset));
printf("Time To Live :%d\n",hIPv4.ip_TimeToLive);
printf("Protocol :%d\n",hIPv4.ip_Protocol);
printf("Checksum :%#x\n",swap_uint16(hIPv4.ip_Checksum));
printf("Source : %d.%d.%d.%d\n",hIPv4.ip_Source[0]
,hIPv4.ip_Source[1]
,hIPv4.ip_Source[2]
,hIPv4.ip_Source[3]);
printf("Destination : %d.%d.%d.%d\n",hIPv4.ip_Destination[0]
,hIPv4.ip_Destination[1]
,hIPv4.ip_Destination[2]
,hIPv4.ip_Destination[3]);
return 0;
}
Result >
Version :4
Header length :20 Bytes
Service :00
Total Length :60
Identification :0x5887 (22663)
Fragment Offset :0
Time To Live :128
Protocol :1
Checksum :0x5eaa
Source : 192.168.1.31
Destination : 192.168.1.32
